MgF2 Crystal

Magnesium Fluoride is used for optical elements in the infrared where extreme ruggedness and durability is required. Its useful transmission range is 0.11 m - 7.5 m. Irradiation does not lead to color centers. Magnesium fluoride is a rugged, hard material which is resistant to thermal and mechanical shock. Considerable mechanical shock is needed to cause cleavage which is near perfect when it occurs. The natural form of MgF2 is known as Sellaite. Magnesium fluoride is a positive birefringent crystal grown normally to 135 mm diameter by vacuum Stockbroker technique, seeding along the C-axis.

Magnesium Fluoride (MgF2)


BASE PROPERTIES
PARAMETER
VALUE
OPTICAL

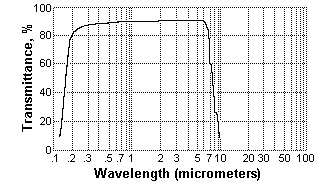

Transmission Range
0.11 to 7.5 microns
Refractive Index
N0=1.3836 Ne=1.3957 at 0.405 microns
Reflection Loss
11.2% at 0.12 microns (2 surfaces)
Restrahlen Peak
20 microns
dN/dT
+2.3 and +1.7 x 10-6e/ C at 0.4 microns
PHYSICAL
Density
3.177 g/cm3
Melting Point
1255 C
Thermal Conductivity
0.3 W/(m K) at 27 C
Thermal Expansion
13.7and 8.48 x 10-6e/ C
Hardness
Knoop 415 kg/mm2
Specific Heat Capacity, cal/(g K)
at 298 K
at 1700 K
0.24
0.362
Dielectric Constant
4.87 parallel and 5.45 perpendicular
Young's Modulus (E)
138.5 GPa
Shear Modulus (G)
54.66 GPa
Bulk Modulus (K)
101.32 GPa
Elastic Coefficients
C11=140.2 C12=89.5 C44=56.8
C33=204.7 C13=62.9 C66=95.7
Apparent Elastic Limit
49.64 MPa
Poisson Ratio
0.276
CHEMICAL
Solubility
<0.0002 g/100g water at 0 C
Molecular Weight
62.32
Class/Structure
Tetragonal, can cleave on C-axis
REFRACTIVE INDEX
Wavelength, m
0.20
0.23
0.27
0.34
0.56
Refractive Index (ne)
1.43
1.42
1.41
1.40
1.39
Refractive Index (no)
1.42
1.41
1.40
1.39
1.38
