Nonstandard Wedge Prisms


PWG0A01

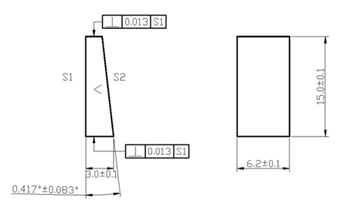

Dimension=3.06.215mm

Specifications
Type
 Nonstandard
Material N-BK7
Dimension Tolerance
 0.1mm
Tc Tolerance
 0.1mm
Surface Quality
 60-40
Flatness
 /2@633nm
Wedge Angle
<0.245
Notes: For coatings,append coating suffix and specify faces to be coated.
