Products >> Machine Vision Lenses >> Telecentric Lenses

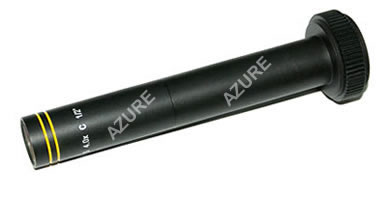

>AZURE- 6540TSM
Specification
Working Distance :  65mm
Magnification :  4x
Mount : C
NA : 0.073
Effective Fno:  27
Format :  1/2"
Resolution: 3.4μm
Depth of Field : 0.14mm
Field Range: 1.6mm
TV Distortion :  0.002%

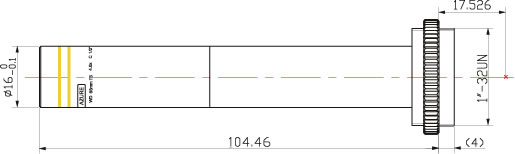

Dimension
MTF Curves
