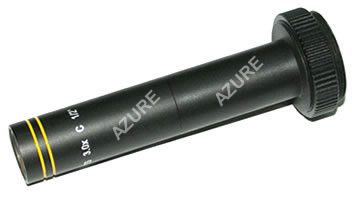

>AZURE- 6530TSM
Specification
Working Distance :  65mm
Magnification :  3x
Mount : C
NA : 0.069
Effective Fno:  21.9
Format :  1/2"
Resolution: 4.7μm
Depth of Field : 0.2mm
Field Range: 2.1mm
TV Distortion :  0.0035%

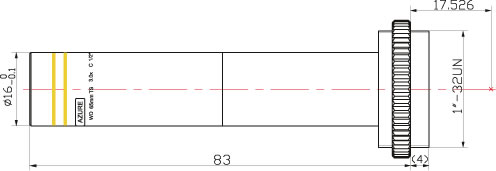

Dimension
MTF Curves
