Products >> Machine Vision Lenses >> Telecentric Lenses
>AZURE- 6515TSMD
Specification
Working Distance :  65mm
Magnification :  1.5x
Mount : C
NA : 0.048
Effective Fno:  15.5
Format :  1/2"
Resolution: 7μm
Depth of Field : 0.5mm
Field Range: 4.3mm
TV Distortion :  0.0005%

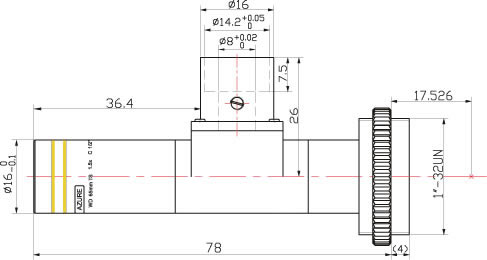

Dimension
