Products >> Machine Vision Lenses >> Fixed Mega-pixel Auto Iris Lenses >> 50mm

>Item No: AZURE-5020DM

Specification
Focal Length :	50mm
Resolution:	2.0 mega-pixel
Back Focus :	9.4mm
Mount :	C
F/No :	2.0
Format :	2/3＂
Iris Type :	Auto Iris
Horizontal Angle :	2/3"	10.06°
	1/2"	7.32°
	1/3"	5.50°
	1/4"	4.12°
Distortion :	<0.5%
Focusing range:	∞ ~ 1m
Elements :	6 glasses

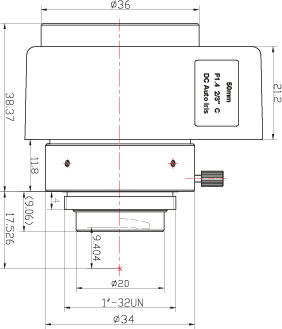

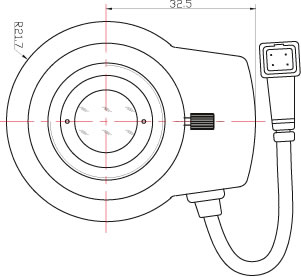

Dimension :	￠36 x 38.37mm
Filter Thread :	M30.5x 0.5

MTF Curves
