Products >> Machine Vision Lenses >> Fixed Mega-pixel Auto Iris Lenses  >> 35mm

>Item No: AZURE-3514DM
Specification
Focal Length :  35mm
Resolution: 2.0 mega-pixel
Back Focus :  9.44mm
Mount : C
F/No : 1.4
Format :  2/3＂
Iris Type :  Auto Iris
Horizontal angle :  2/3" 14.33°
1/2" 10.45°
1/3" 7.85°
1/4" 5.89°
Distortion : <0.2%
Focusing range :  ∞ ~  0.5m
Elements :  6 glasses
Dimension : ￠36 x 36.61mm
Filter Thread :  M30.5 x 0.5
Weight:  104.5g

35mm Auto Iris Lens

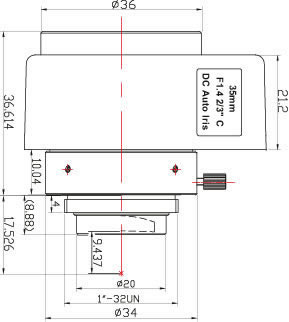

Dimensions           MTF Curves
