>Item No: AZURE- 1614M5M
Specification
Resolution: 5 mega-pixel
Focal Length :  16mm
Back Focus :  10.27mm
Mount : C
F/No : 1.4
Format :  2/3＂
Iris Type :  Manual Iris
Angle of View :  37.4°
Distortion : <0.2%
Focusing range : ∞ ~ 0.2m
Dimension: ￠38.5 x 45.8mm
Filter Thread: M35.5 x 0.5
Weight: 139g

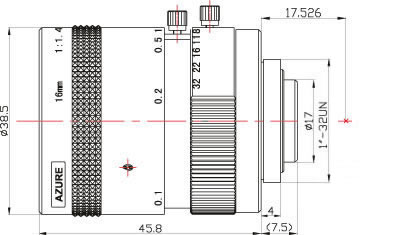

Dimensions
MTF Curves
