Products >> Machine Vision Lenses >> Vari-focal Mega-pixel Auto Iris Lenses
>Item No: AZURE- 1236ZD
Specification
Resolution: 2.0 mega-pixel
Focal Length :  12 ~ 36mm
Back Focus :  10.51mm
Mount : C
F/No: 2.8
Format :  2/3＂
Iris Type :  Auto Iris
Iris Range :  F2.8~Close
Angle of View :  49.6° ~ 17°
Distortion : -3.5%~+3.5%
Focusing range : ∞ ~ 0.1m
IR Correction: OK
Coating Range: 400nm~950nm
Dimension: ￠38.5 x 53.97mm
Filter Thread :  M35.5 x 0.5

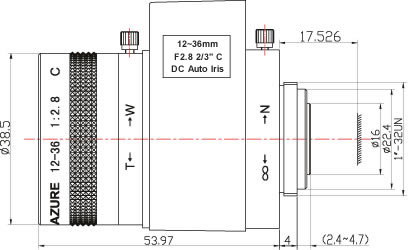

Dimension
MTF Curves
