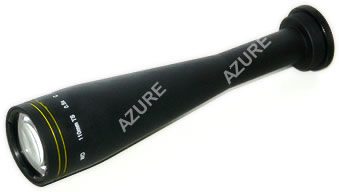

>AZURE- 11005THM
Specification
Working Distance :  110mm
Magnification :  0.5x
NA :  0.026
Mount : C
Effective Fno:  9.5
Format : 2/3"

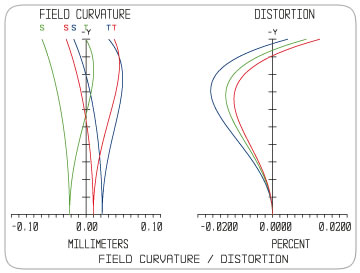

Distortion : <0.012%
Depth of Field : 3mm
Dimension : ￠34 x 146mm
Field Range: 17.6mm
Weight : 143g

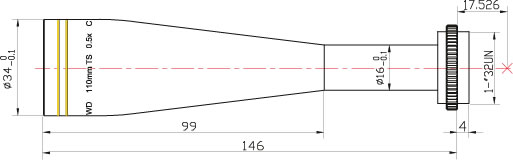

Dimension
y
MTF Curves
