Machine Vision Lenses
>>
5 MP Manual Iris Lenses
>> 8mm
>Item No: AZURE- 0814M5M
Specification
Resolution: 5 mega-pixel
Focal Length : 8mm
Back Focus: 9.91mm
Mount : C
F/No : 1.4
Format : 2/3"
Iris Type : Manual Iris
Angle of View : 66°
Distortion : <-1%
Focusing range : ∞ ~ 0.1m
Dimension: ¢38.5 x 50.2mm
Filter Thread :
M35.5 x 0.5
Weight: 156g

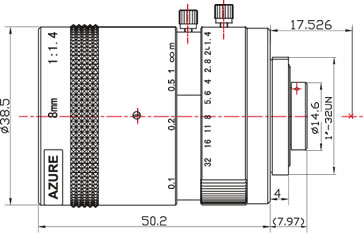

Dimensions
MTF Curves
↑
