| Specifications |
| Wavelength |
473nm |
| CW
Output power |
5mW、10mW、30mW、50mW、100mW |
| Mode
No.e.g. Output power 50mW |
BL-XX-T
BL-50-T |
| Output
stability(rms) |
3%
over 2 hours |
| Transverse
beam mode |
TEM00 |
| Beam
Divergence (1/e2,Full Angle) |
<1.5mrad |
| Beam
Diameter (1/e2) |
<1mm |
| Beam
pointing stability(after warm up) |
<0.05mrd |
| Ellipticity |
>90% |
| Line
width |
0.1nm |
| Operating
temperature |
0~40degree |
| Warm
up time |
<5minutes |
| Dimensions |
35X35X102mm
(include a fixed 5mm thick baseplate) |
| Expected
lifetime |
>5,000hours |
|
| BL-XX-T
|
|
|
| GL-XX-F
series |
|
| Application |
Feature |
| Alignment |
532nm
Output, CW, |
| Test
& Measurement |
Line
output |
| |
Easy
Operation & Maintenance |
| |
Ultra-compact
Design |
| |
High
reliability |
| |
Low cost |
|
| Specifications |
| Wavelength |
532nm |
| CW
Output power |
1mW、5mW、10mW、20mW、30mW |
| Mode
No.e.g. Output power 50mW |
GL-XX-F
GL-20-F |
| Output
stability(rms) |
<+/-5%
over 2 hours |
| Transverse
beam mode |
TEM00 |
| Beam
Divergence (1/e2,Full Angle) |
<1.5mrad |
| Beam
Diameter (1/e2) |
<1mm |
| Beam
pointing stability(after warm up) |
<0.05mrd |
| Ellipticity |
>90% |
| Output
noise(rms,20Hz-20MHz) |
20%
around 50~200KHz |
| Line
width |
0.1nm |
| Warm
up time |
<5minutes |
| Modulation |
>30KHz by
TTL Mode or >10KHz by Analog Mode |

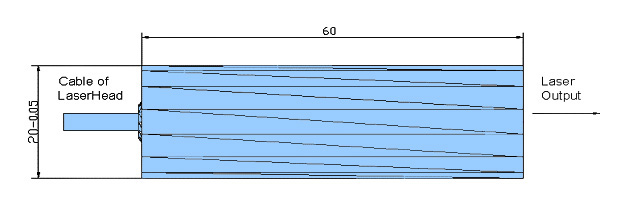

| Dimensions |
Φ20X60mm |
| Expected
lifetime |
>5,000hours |
|
| GL-XX-F |
|
|
Note:
1.Total laser with APC function
2.Working Temperature 10~35deg,output less than 5mw, application
temperature-10-50 deg.
3.Power Supply
|
 |
| Mode
No |
DDR-500AM |
DDR-500S |
| LD
Driver operating current |
50~600mA |
| LD Driver
current limit |
50~600mA |
| Max
LD Driver voltage |
3.5V |
| Modulation |
>1KHz by
Analog Mode |
>100KHz by TTL Mode |
| Operating
voltage |
5VDC |
| Operating temperature |
-25~55degree |

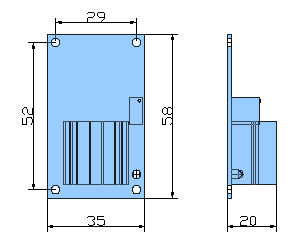

| Dimensions |
58X35X20mm |
|
|
| GL-XX-S
Series |
|
| Application |
Feature |
| Test
& Measurement |
532nm
Output, CW, TEM00 |
| Fluorescence
excitation |
Easy
Operation & Maintenance |
| DNA
Sequencing |
Ultra-compact
Design |
| |
High reliability |
| |
Low
cost |
|
| Specifications
|
| Wavelength |
532nm |
| CW
Output power |
5mW、10mW、20mW |
| Output
stability(rms) |
3%
over 2 hours |
| Transverse
beam mode |
TEM00 |
| Beam
Divergence (1/e2,Full Angle) |
<1.5mrad |
| Beam
Diameter (1/e2) |
<1mm |
| Beam
pointing stability(after warm up) |
<0.05mrd |
| Ellipticity |
>90% |
| Laser version |
SLM
Version |
Low noise version |
| Mode No.e.g.
Output power 10mW |
GL-XX-S GL-10-S |
GL-XX-N GL-10-N |
| Longitudinal
mode |
Single longitudinal
mode |
Multiple longitudinal modes |
| Output
noise(rms,20Hz-20MHz) |
<0.5% |
<1% |
| Line width |
<10-5nm |
0.1nm |
| Coherent
length |
>50meters |
>50cm |
| Operating
temperature |
15≧~35≧ |
0~40≧ |
| Warm up time |
<5minutes |
<5minutes |

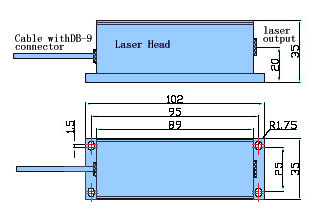

| Dimensions |
35X35X102mm
(include a fixed 5mm thick baseplate) |
| Expected
lifetime |
>5,000hours |
|
| GL-XX-S |
|
|
| GL-XX-T
Series |
|
| Application |
Feature |
| Alignment |
532nm
Output, CW, TEM00 |
| Laser
Light Shows & Display |
Easy
Operation & Maintenance |
| Test
& Measurement |
Ultra-compact
Design |
| Fluorescence
excitation |
High reliability |
| Holography |
Low
cost |
|
| Specifications
|
| Wavelength |
532nm |
| CW
Output power |
10mW、30mW、50mW、100mW、150mW、200mW |
| Mode
No.e.g. Output power 50mW |
GL-XX-T
GL-50-T |
| Output
stability(rms) |
3%
over 2 hours,(ultra-stable option: <1% over 24hours) |
| Transverse
beam mode |
TEM00 |
| Beam
Divergence (1/e2,Full Angle) |
<1.5mrad |
| Beam
Diameter (1/e2) |
<1mm |
| Beam
pointing stability(after warm up) |
<0.05mrd |
| Ellipticity |
>90% |
| Output
noise(rms,20Hz-20MHz) |
20%
around 50~200KHz |
| Line
width |
0.1nm |
| Coherent length |
Optional:>50cm |
| Modulation |
Optional:>30KHz
by TTL Mode or >10KHz by Analog Mode |
| Operating temperature |
0~40degree |
| Warm
up time |
<5minutes |
| Dimensions |
35X35X102mm
(include a fixed 5mm thick baseplate) |
| Expected
lifetime |
>10,000hours |
|
| GL-XX-T |
|
|
Note
1. AZURE GL-XX-T series laser, commonly extinction is 3:1,
if customer need higher can reach >100:1 no problem, the
highest 3000:1.
2. The laser with APC function.
3. if customer need modulation function, we can offer simulate
and TTL, frequency>1KHz, by APC, if use TTL, must >
10KHz, current remove APC, can reach 30KHz.
4. we offer two type power supply
|
 |
| Mode
No |
DDR-600AM |
DDR-2000S |
| LD
Driver operating current |
50~1800mA |
| LD Driver
current limit |
50~1800mA |
| Max
LD Driver voltage |
3.5V |
| Temperature
control function |
〔 |
〔 |
| Auto Power Controller
Function |
〔 |
〔 |
| Modulation |
>2KHz by
Analog Mode |
>100KHz by TTL Mode |
| Operating
voltage |
12VDC/2.5A |
| Operating temperature |
-25~55degree |

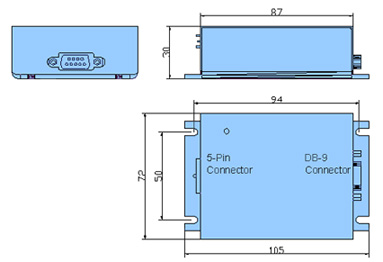

| Dimensions |
72X30X105mm |
|
|
