Products >>DPSS Laser module >>RGB Laser                                               BACK


RGB Laser at R-635 / G-532 / B-473(nm)          RGB Laser at R-655 / G-532 / B-473(nm)


     AZURE-RGB635 / 1~1000mW                                AZURE-RGB655 / 1~1000mW

RGB Laser at R-671 / G-532 / B-473(nm)
     AZURE-RGB671 / 1~300mW


AZURE-RGB635 / 1~1000mW
Specification
  Item NO   AZURE-RGB635nm
  Wavelength(nm)  Red at 635nm,Green at 532nm,Blue at 473nm
 Output power(mw)   >1,100,200,...,1000  Transverse mode TE00 / TEM00
 Operating mode  CW  Beam divergence,full angle(mrad) <5.0
 Beam diameter at the aperture(mm)  <6.0  Beam height from base plate(mm) 34
 Operating temperature()  1035  Power supply(90-264VAC)  AZURE-PSIII-LED
 AZURE-PSIII-FDA
 AZURE-PSIII-OEM
 Expected lifetime(hours)  10000  Warranty period 1 year
 TTL modulation/Analog modulation Optional,2kHz or higher(others on request,up to 30kHz)
 Remark

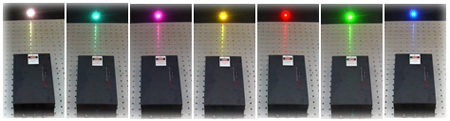

RGB laser module can generatemulticolors,such as red,orange,yellow,green,green,indigo,blue,purple and so much
High Power RG is available if you use high power Red and Green laser modules made by AZURE.
Laser & Laser System




Specification
Item No : RGB-635
Length :263
Width :  245
Height : 146mm3
Weight : 3.2kg



Specification
Item No : AZURE-PSIII-LED
Length : 154
Width : 155
Height : 95mm3
Weight : 1.5kg
  1

Specification
Item No : AZURE-PSIII-FDA
Length : 133
Width : 130
Height : 65mm3
Weight : 1.2kg
  1
1
Specification
Item No : AZURE-PSIII-OEM
Length : 100
Width : 60
Heigth : 56mm3
Weigth : 0.2kg
  1
