1Products >>CMOS Lenses>>FIFO-WIR2C                                                                                                      BACK
>>Specifications

 Item NO  FIFO-WIR2C
 Iris Type  Fixed
 Focal Length (mm)  2 mm
 Aperture (F)  2.4
 Mount  M12X0.5
 Format  (inch)  1/4"
 Field Angle ()  1/4" CMOS:156 X120 X85,1/4" CCD:135  X100 X75
 MOD (m)  0.2
 Dimension (mm) 1712.6
 Sensing Area  1/4" CCD/CMOS
 Max Image Height  4.6mm
 Optical Distortion  <20%
 Lens Construction  5 Components 5 Glasses+1Filter 8 Field Angle
 IR CUT Filter
 Weight (g)  4.5

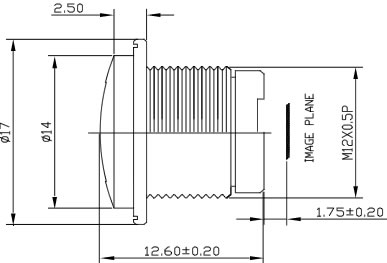

>>Dimensions
