1Products >>CMOS Lenses>>FIFO-WIR1.95C                                                                                                   BACK
>>Specifications

 Item NO  FIFO-WIR1.95C
 Iris Type  Fixed
 Focal Length (mm)  1.95 mm
 Aperture (F)  2.2
 Mount  M12X0.5
 Format  (inch)  1/4"
 Field Angle ()  1/4" CMOS:156X120X85
 MOD (m)  0.2
 Dimension (mm) 17.0012.95
 Sensing Area  1/4" CMOS(OV7950)
 Max Image Height
 Optical Distortion  <-62%
 Lens Construction  6 Components 6 Glasses+1Filter 8 Field Angle
 IR CUT Filter
 Weight (g)  4.5

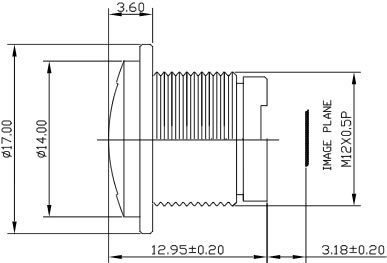

>>Dimensions
