1Products >> COMS Lenses>>FIFO-IC12C                                                                                                      BACK
>>Specifications

 Item NO  FIFO-IC12C
 Iris Type  Fixed
 Focal Length (mm)  12.0 mm
 Aperture (F)  2.0
 Mount  M12X0.5
 Format  (inch)  1/4"
 Field Angle ()  12.8X17X21.4
 MOD (m)  0.4
 Dimension (mm) 14.013.9
 Sensing Area  1/4" CMOS
 Max Image Height  6.5mm
 Optical Distortion  <4%
 Lens Construction  4 Components 4 Elements 3 Glasses+1 IR Filter
 IR CUT Filter  T=50% @ 650nm10nm
 Weight (g)  5.0

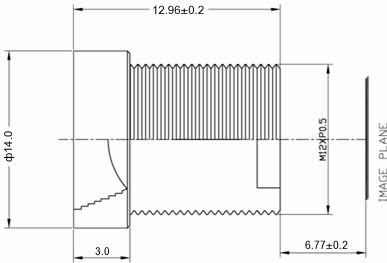

>>Dimensions
