1Products >> CMOS Lenses>>FIFO-IC4.7C                                                                                                       BACK
>>Specifications

FIFO-4.7C
 Item NO  FIFO-IC4.7C
 Iris Type  Fixed
 Focal Length (mm)  4.50 mm
 Aperture (F)  2.0
 Mount  M12X0.5
 Format  (inch)  1/4"
 Field Angle ()  61
 MOD (m)  0.2
 Dimension (mm)  14.016.96
 Sensing Area  1/4" CCD/CMOS
 Max Image Height  4.6mm
 Optical Distortion  <-9.6%
 Lens Construction  5 Components 5 Glasses (4G+IR Cut Filter)
 IR CUT Filter  50% @ 65010nm
 Weight (g)  5

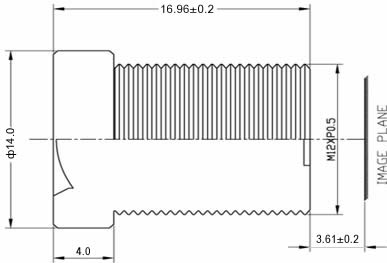

>>Dimensions
