1Products >> Board Lenses>>FIFO-3.6B                                                                                                     BACK
>>Specifications
FIFO-3.6B
 Iris Type  Fixed
 Sensing Area  1/3"or 1/4"CCD/CMOS
 F/NO  2.0
 Focal Length (mm)  3.6
 Mount  M12X0.5
 Format  (")  1/3,1/4
 Field Angle ()  100,64
 Min. Object Distance (m)  0.2
 Optical Distortion  <-13%
 Lens Construction  4 Components 4 Glasses
 Dimension (mm)  14.0X15.07
 Weight (g)  6.0

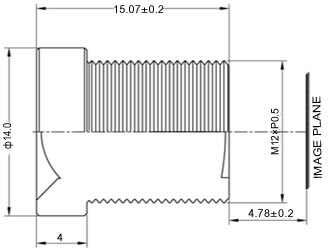

>>Dimensions
Top
