Products >> Board Lenses>>FIFO-2.1B                                                                                                    BACK
>>Specifications
FIFO-2.1B 1
 Iris Type  Fixed
 Sensing Area  1/3" CCD
 F/NO  2.0
 Focal Length (mm)  2.1(5%)
 Mount  M12X0.5
 Format  (")  1/3
 Field Angle ()  128.6
 Min. Object Distance (m)  151,120
 Optical Distortion  26%
 Lens Construction  6 Components 6 Glasses
 Dimension (mm)  17X24.55
 Weight (g)  10

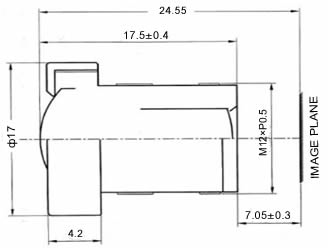

>>Dimensions
Top
