1Products >> Board Lenses>>FIFO-16B                                                                                                     BACK
>>Specifications
FIFO-16B
 Iris Type  Fixed
 Sensing Area  1/3" CCD
 F/NO  2.0
 Focal Length (mm)  16.0
 Mount  M12X0.5
 Format  (")  1/3
 Field Angle ()  23.5, 16
 Min. Object Distance (m)  0.4
 Optical Distortion  0.3%
 Lens Construction  4 Components 4 Glasses
 Dimension (mm)  14.0X13.6
 Weight (g)  6

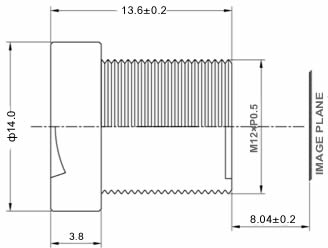

>>Dimensions
