Products >> Machine Vision Lenses >> F-mount Lenses
>Item No: AZURE- 5020MF
Specification
Resolution: 10 mega-pixel
Focal Length :  50mm
Back Focus :  34.49mm
Mount : F
F/No: 2.0
Iris Type :  Manual Iris
Dimension : ￠72 x 90.4mm
Filter Thread : M52 x 0.75
Distortion : <0.17%

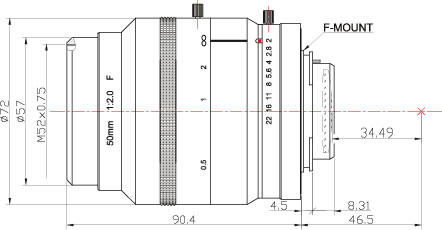

Dimensions
MTF Curves
